[KB649]How to print multiple lines with PcVue

Tags: Print

PcVue miscellaneous
11 years ago
By RM
Options
Print
Applies to:

PcVue version 10.0 SP1 onwards
Summary:

This article describes how to print multiple lines on the same page.

For example, using this configuration, you can select several lines of a Log Viewer and print them on a single page. Without this configuration you may get one line on each page.
Details:

To enable this functionality take the following steps.

1. Go to the menu Configure > Station > Printers and configure as in the screen shot below.
Configure Station Printers menu

  • Tick Enable
  • Choose your printer in the field “Printer name”
  • Choose As graphics in the field “True Type Front Option”
  • Tick Enable packet printing
  • Set the field “Lines per packet” (to 50 for example)

2. Go to Configure/Project/Setting then printer and change the following settings.

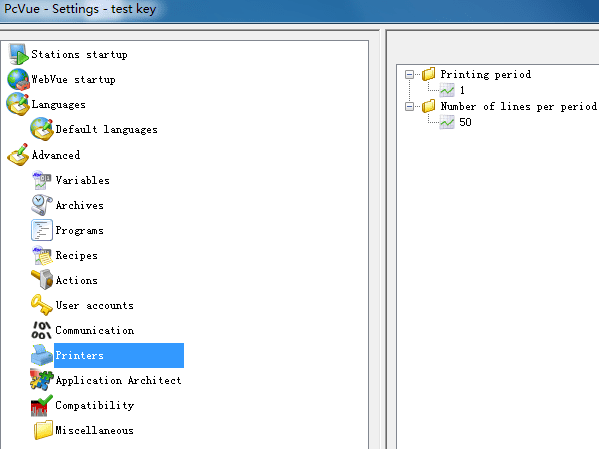

Configure Project Setting menu small

Set the property Number of lines per period (to 50 for example)

Created on: 18 Jun 2013 Last update: 13 May 2024
