| Applies to:PcVue 8.10 onwards | ||
|
|
||
| Summary:.hds files are generated by the HDS, during abnormal operation, as temporary storage for events. The HDS will attempt to recover the information in them when normal operation resumes but you can also manually import them using the following procedure. See also KB654 How .hds files work?. Originator ACH |
||
|
|
||

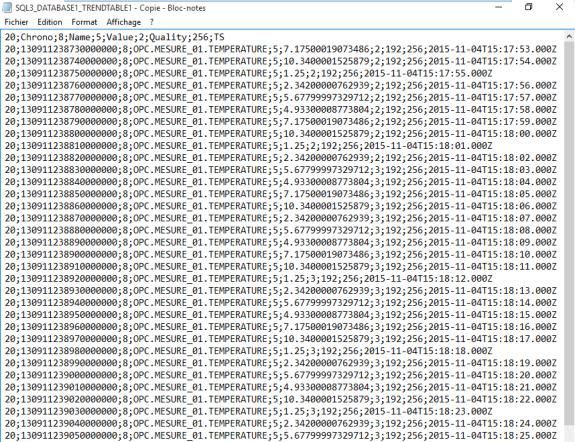

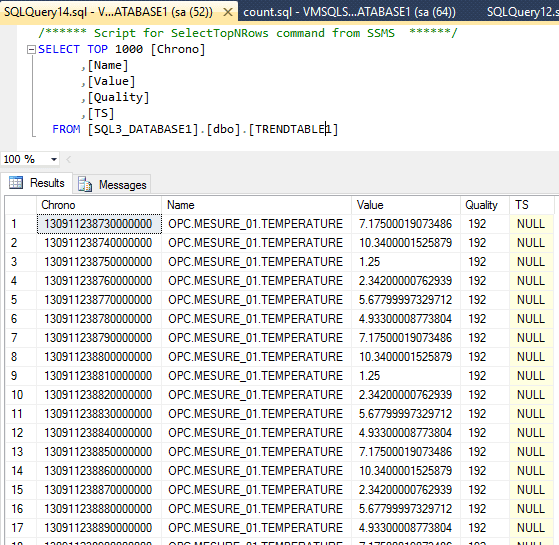

| Details:The following example has this configuration.1 x SQL Server 2014 Standard instance : VMSQLSGBD\SQLSRV2014_DEV 1 x SQL3_DATABASE1 created by PcVue with a LOGTABLE and TRENDTABLE. Note that using this method it is not possible to insert additional columns such as TS. 1. TRENDTABLE import Add the following header to the TRENDTABLE .hds file. 20;Chrono;8;Name;5;Value;2;Quality;256;TS

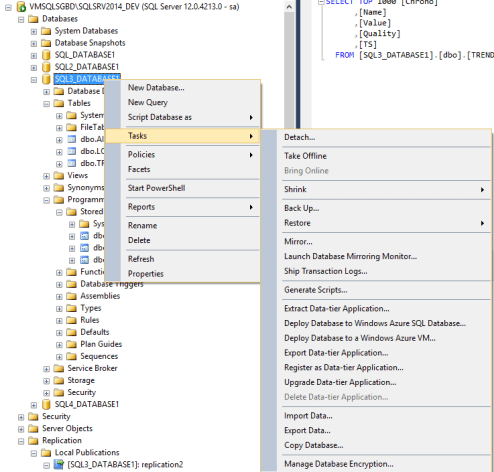

Using Microsoft SQL Server Management Studio select Import Data. This opens the SQL Server Import and Export Wizard.

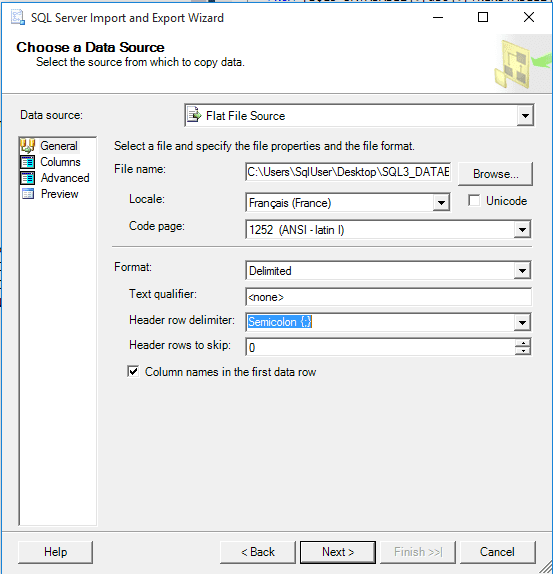

Select Flat File Source and the file to import.

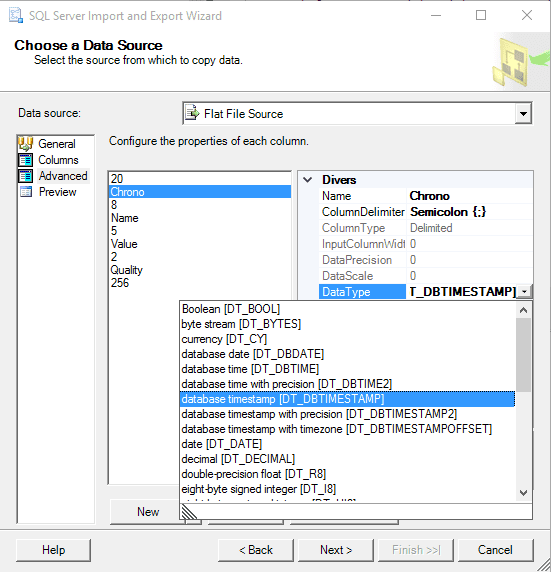

Using the Advanced node, select the DataType for each of the fields. Chrono: DT_I8

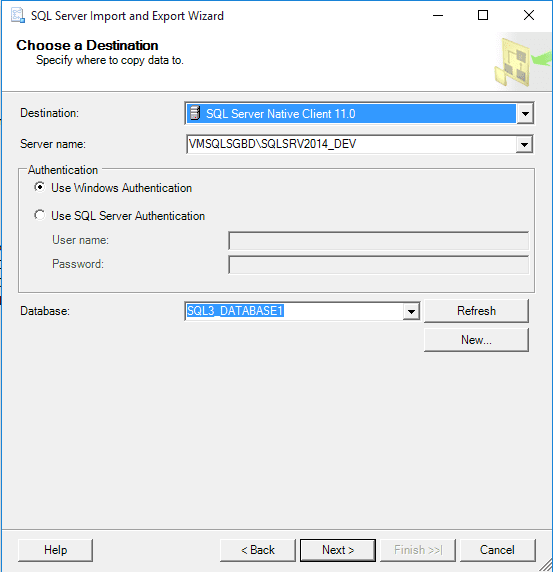

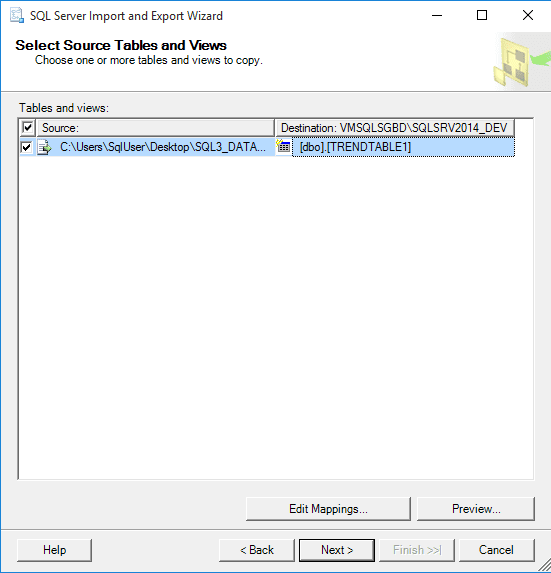

Choose the destination server and table.

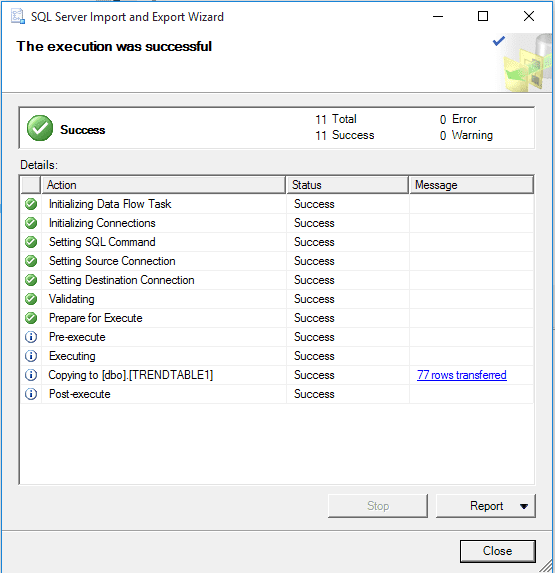

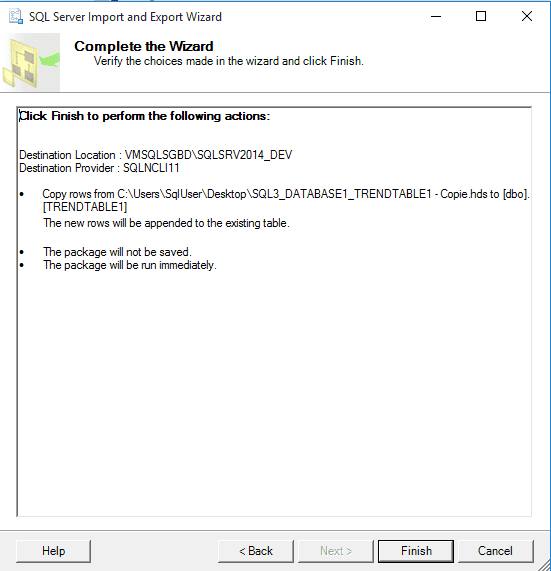

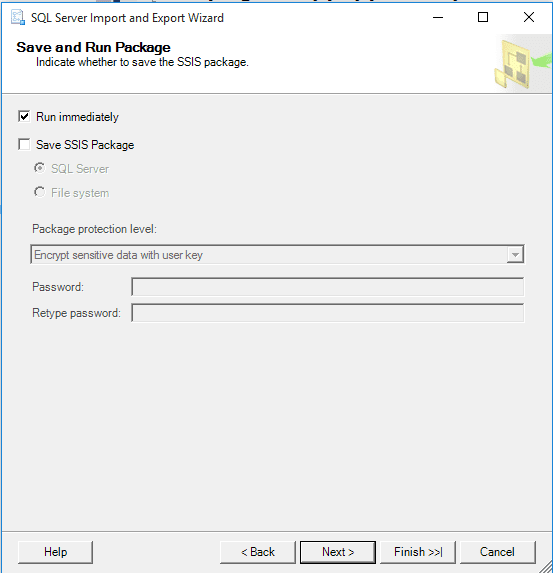

The wizard generates an SSIS (SQL Server Integrated Services) package which you then run to complete the export.

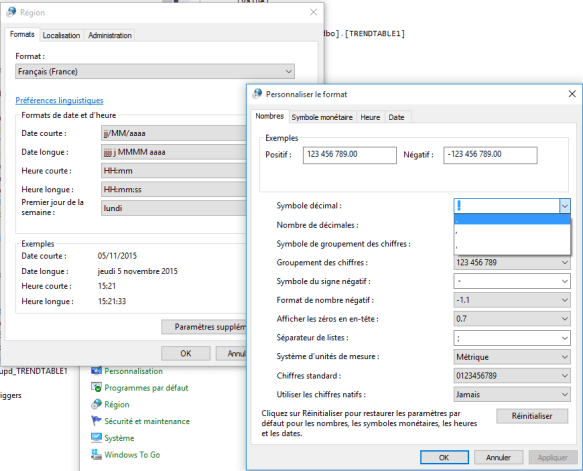

If you have an error on the Value column it may be due to regional settings. Try changing the decimal seperator from a Comma to a Period (Full Stop).
2. LOGTABLE import The process is similar to the TRENDTABLE with the following differences. The following header must be added to the LOGTABLE .hds file. 20;[Chrono];8;[LogList];1;[AssocLabel];20;[EvtNumber];8;[EvtTitle];8;[Name];17;[Value];1;[ValueT];3;[Quality];3;[AlarmLevel];3;[AlarmState];1;[UserComment];1;[Threshold];1;[NumParam];1;[TextParam] The data types are. Chrono: DT_I8 3. If you have customised tables If you are using a customised table, the corresponding data types can be found in the help. Application Explorer.Archives.Configuring databases.Configuring the database tables.What properties can you record? |
||
|
|
||
|
Created on: 10 Oct 2016 Last update: 26 Aug 2024
