[KB279]How to broadcast exception periods from one time table to others

Tags: Animations

HMI
14 years ago
By RM
Options
Print
Applies to:

Pcvue version 8.2 SP1 onwards.
While the basic content of this article remains valid, details may have changed since it was written.
Summary:

How to broadcast exception periods from one time table to others.
Details:

How to implement it ?

  1. In the file « …Pcvue\USR\Project_Name\C\Param.dat », add the following line : « BROADCASTTIMETABLE,TB1,TB2,TB3,TB4 »
    • TB1 : name of time table with exceptions period to be broadcasted to others time table
    • TBa,…,TBz : name of time tables with exceptions period to be broadcasted from time table TB1

How_to_broadcast_exceptions_period_of_one_time_table_1

Important notes :

  • Broadcast is only possible with same type of time tables (multimode, or standard)

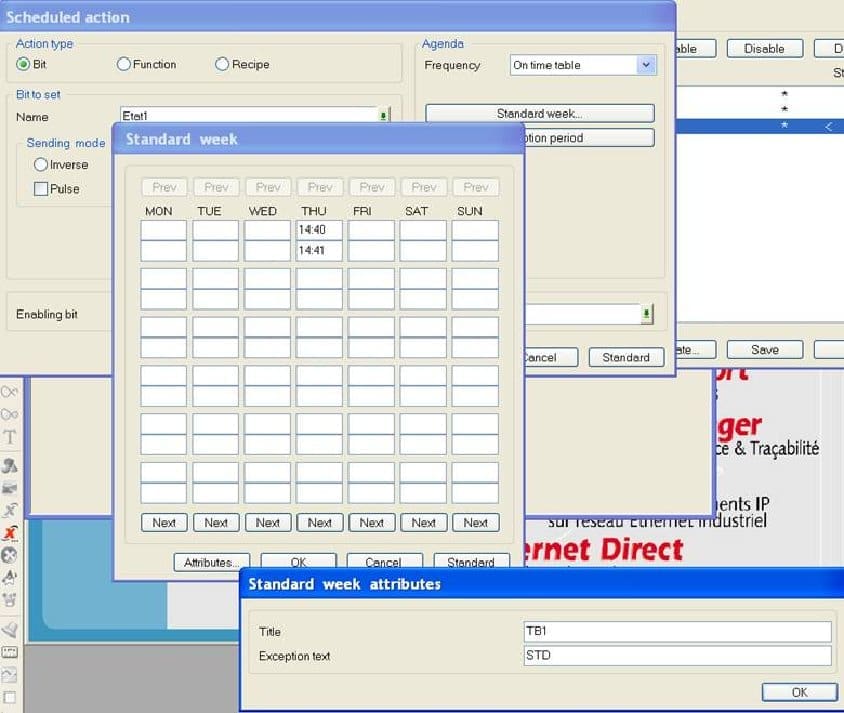

  • Time table must have a title, defined as follows:

How_to_broadcast_exceptions_period_of_one_time_table_2

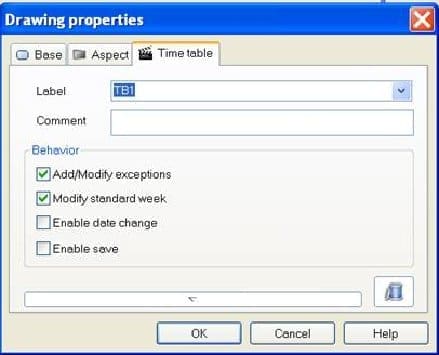

  1. In the project, create a button, with an animation « Send>Time table », with the name of time table with exception periods to be broadcasted to other time table (TB1 ), and the option “add/modify exceptions” ticked :

How_to_broadcast_exceptions_period_of_one_time_table_3

How to use it at run time :

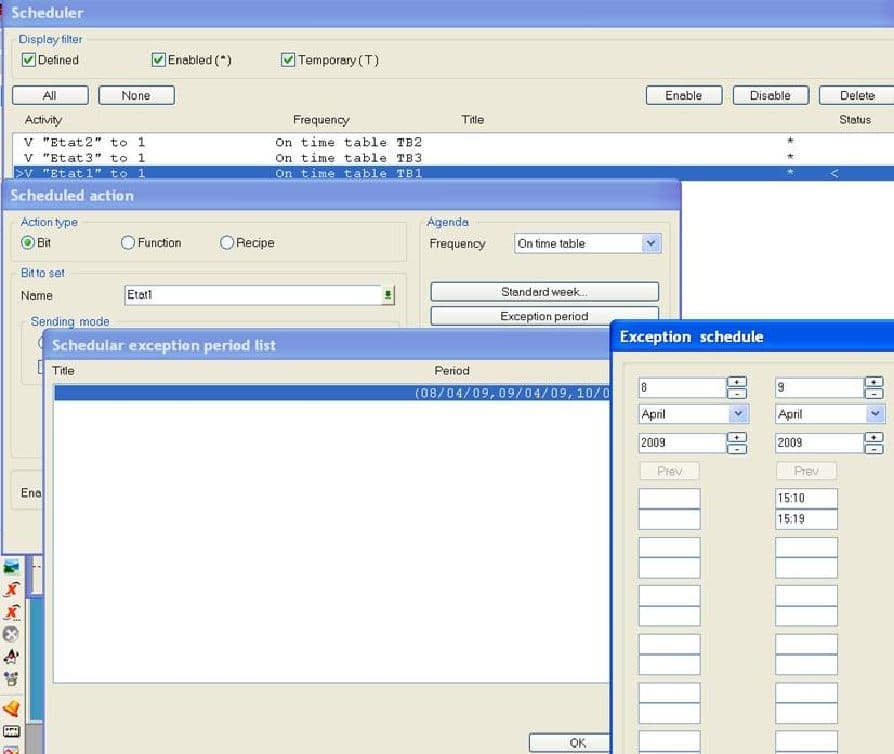

  1. Modify an exception period on time table TB1 :

How_to_broadcast_exceptions_period_of_one_time_table_4

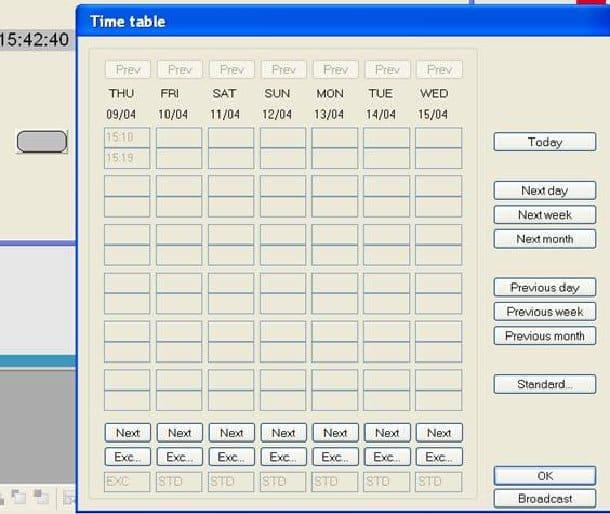

  1. Click on the button :

How_to_broadcast_exceptions_period_of_one_time_table_5

  1. Click on button How_to_broadcast_exceptions_period_of_one_time_table_6
  2. Restart the project (mandatory)

Created on: 17 Dec 2010 Last update: 04 Sep 2024
