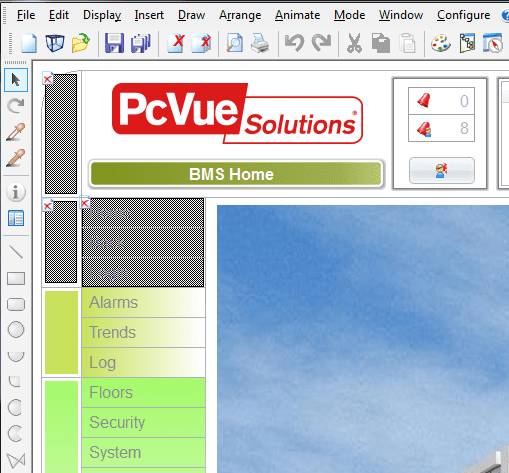

Problem – After starting your project from an earlier version, in PcVue version 11.0 or later, some graphical objects are missing or displayed as a hatched area with a red cross in the top left corner :

Explanation  – Some graphics of the project are from a library which doesn’t exist either in your project or in shared libraries coming with the version of PcVue you’re using .

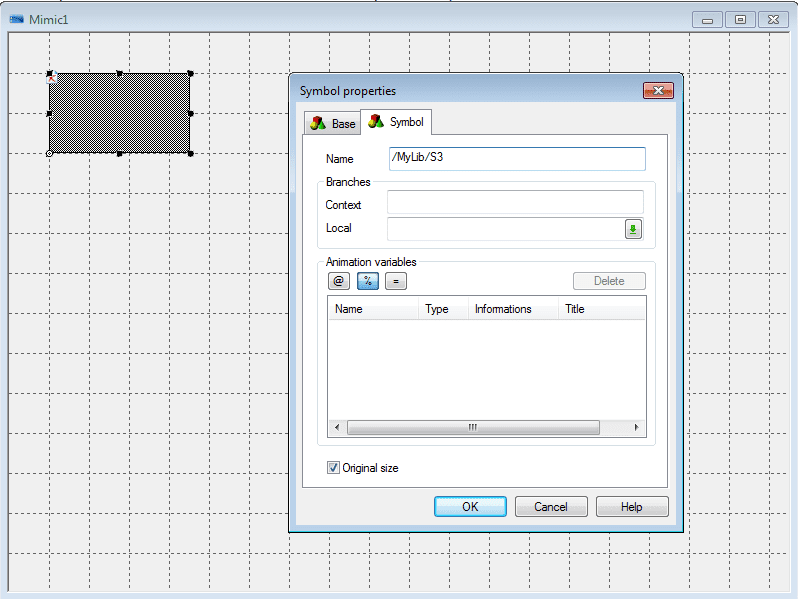

To find the name of the missing object and/or library, switch to design mode and open the properties dialog. The library folder and symbol name are displayed in the Name property in the following format.

*A backslash before the library folder name indicates that it is a shared library.

For more information about libraries, see the on-line help, Section “Project and library overview”, Topic “What is a library?”

Solution – Libraries associated with the project used with the earlier version must be imported. Follow the procedure explained in KB 667 – Migrate a project using libraries to PcVue 11 or later.
