[KB771]FAQ Smart Generator for Factory Link

10 years ago
By RM
Options
Print

Document sans nom

Contents :

  1. When I open the Smart Generator form I cannot find the Smart Generator for FactoryLink
  2. My Client Builder mimics have been imported in PcVue but when I try to open a mimic, PcVue prompts the following user message
  3. My Client Builder mimics have been imported in PcVue but when I open mimic some texts are missing

Question:When I open the Smart Generator form I cannot find the Smart Generator for FactoryLink

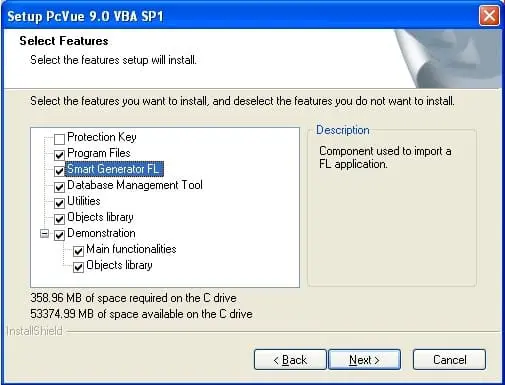

Answer:For version 9.0, user must perform a “custom” setup when installing Pcvue and check the “Smart Generator FL” option

FAQ_FL1

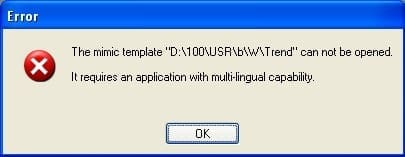

Question:My Client Builder mimics have been imported in PcVue but when I try to open a mimic, PcVue prompts the following user message

FAQ_FL2

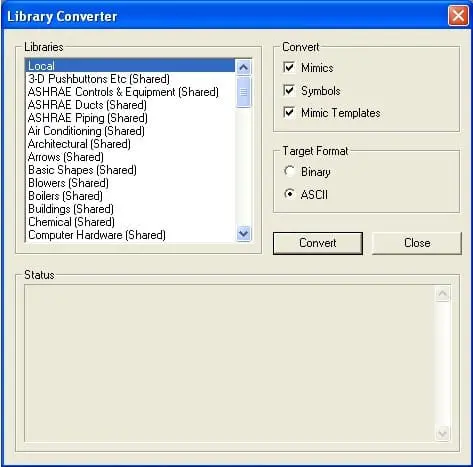

Answer:The mimic, the mimic template or one of the embedded symbols is in binary format. User must convert all the graphical elements to ASCII in Client Builder before importing to PcVue. One easy way to convert all the project is to use the Client Builder Library Converter (Menu “Display\Library converter…”)

FAQ_FL3

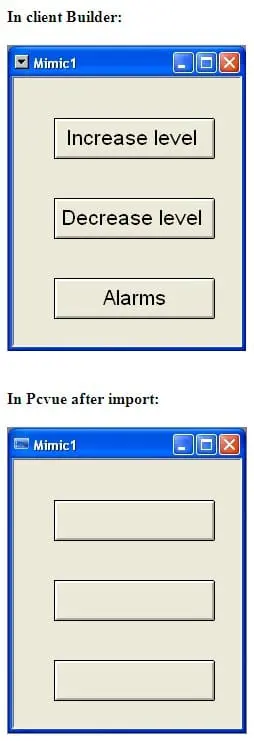

Question:My Client Builder mimics have been imported in PcVue but when I open mimic some texts are missing

FAQ_FL4

Answer:The issue deal with language selection during import. User has selected the wrong language, or user has selected the default language and this default language is not filled.

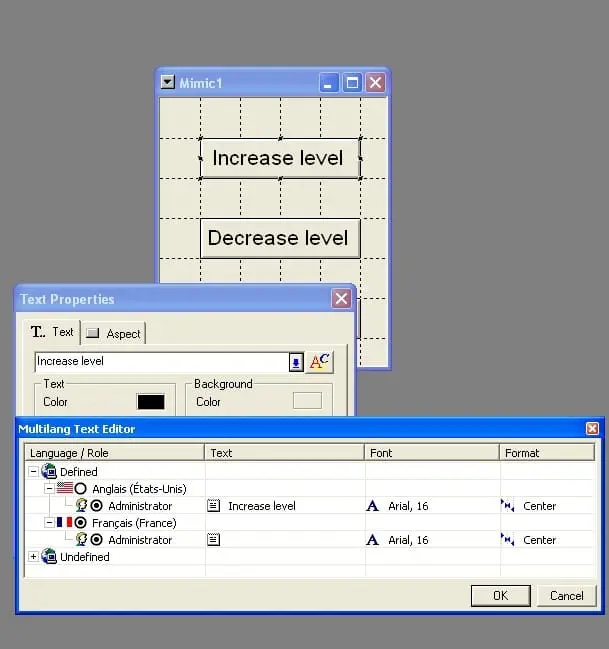

In this example, the texts have been filled for English language, not for French (French text is blank), and default language is French.

FAQ_FL5

When importing the Client Builder project, user has left the “default” language and then Smart Generator has imported a blank text.

There is three ways to solve this issue, depending of what he needs in his PcVue project:

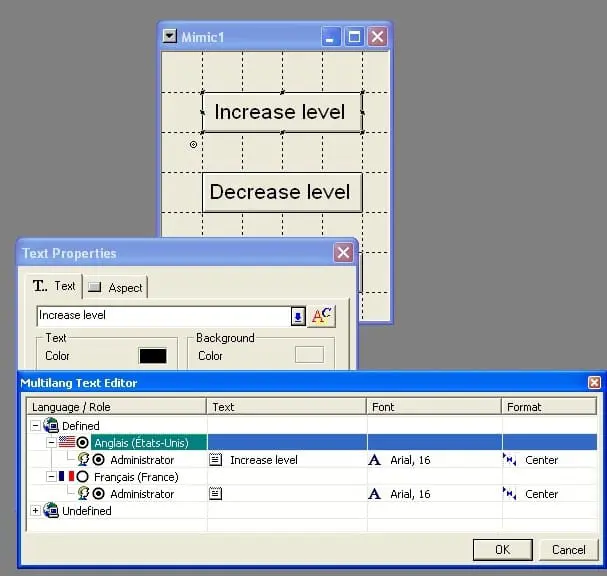

a) User can set English language has default for his text and let the default SG options

FAQ_FL6

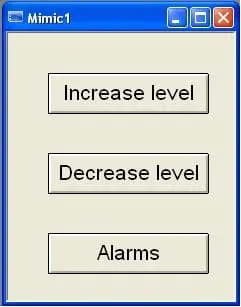

In PcVue he will get an English mimic for language 1

FAQ_FL7

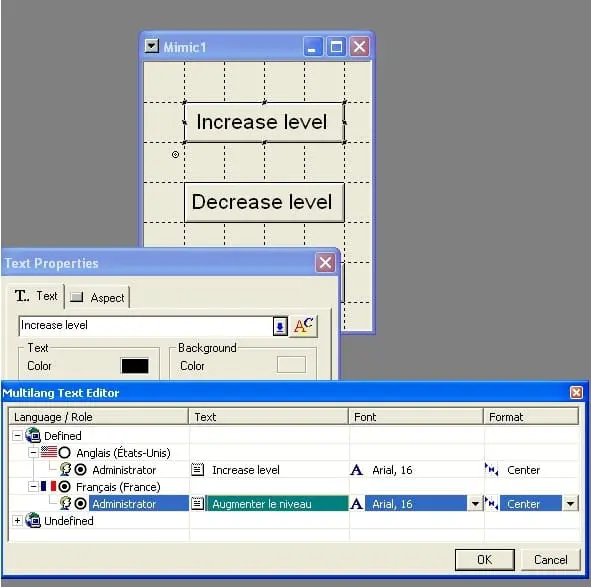

b) User can enter a text for French and let the default SG options

FAQ_FL8

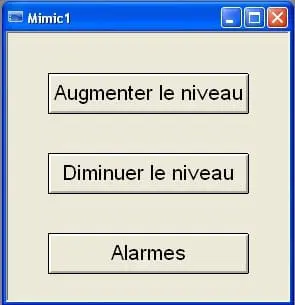

In PcVue he will get a French mimic for language 1

FAQ_FL9

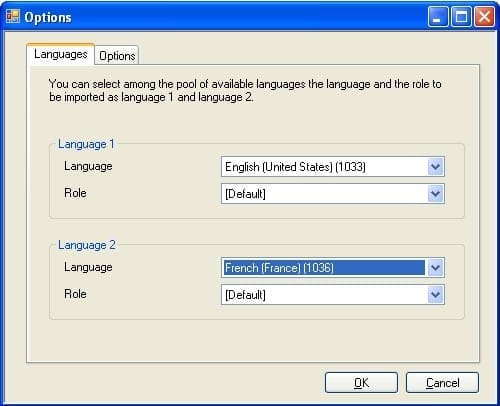

c) User can enter a text for French and select English and French for lang1 and lang2 during Import (PcVue project must be set has bilingual)

FAQ_FL10

In PcVue he will get an English mimic for lang1 and a French mimic for lang2


Created on: 13 Apr 2015 Last update: 26 Aug 2024
