[KB637]DNP3 Sample Project

Tags: Cimway, Communication, DNP3

12 years ago
By RM
Options
Print
Applies to:

PcVue version 11.0.
In general if a project is used with a later version of PcVue it will be automatically converted to that version. Occasionally it may be necessary to make manual modifications.


Summary:

Sample project showing the connection to DNP3.


Details:

The project uses less than 25 variables so it can be run in demo mode.

It uses the Triangle MicroWorks Test Harness to simulate the DNP3 network and device which can be downloaded from the Triangle MicroWorks web site. The Test Harness will run for 28 days after which you must purchase a license. The configuration file for the Test Harness is included in this article.

The project shows basic configuration of a DNP3 network in PcVue, mapping of variables and the use of some (not all) modes of the MDNP3 SCADA Basic instruction.

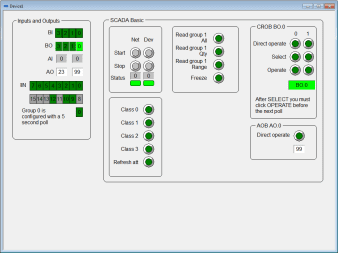

dnp3_mimic_s




Sample project:


Created on: 10 Apr 2013 Last update: 13 May 2024
