[KB299]Display time stamped and quality of a variable using a standard animation

Tags: Animations

HMI
14 years ago
By RM
Options
Print
Applies to:

PcVue all versions.
Summary:

How to display time stamped and quality of a variable using a standard animation
Details:

To display the time stamp of a variable you need to use a Display Register animation and add the extension “.#_T” to the variable.

Display_time_stamped_and_quality_of_a_variable_using_a_standard_animation_1

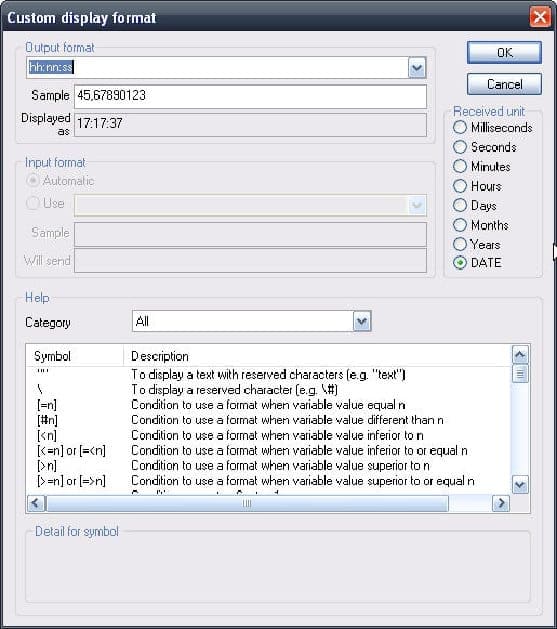

The format need to be selected as custom and select the receive unit as DATE

Display_time_stamped_and_quality_of_a_variable_using_a_standard_animation_2

To display the quality of a variable you need to use a Display Register animation and add the extension “.#_Q” to the variable.

Display_time_stamped_and_quality_of_a_variable_using_a_standard_animation_3

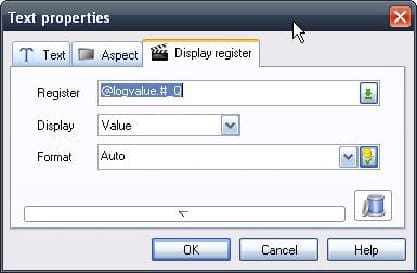

The format is auto.It displays the quality as OPC quality, for example 192 is good quality.

Created on: 17 Dec 2010 Last update: 13 May 2024
