[KB586]Display issue with the ActiveX Microsoft Forms 2.0 ListBox

Tags: ActiveX, Drawing, Graphics

HMI
12 years ago
By f-flechearcinfo-com
Options
Print
Applies to:

PcVue version 9.0 onwards
Summary:

This issue may happen with ActiveX Microsoft Forms 2.0 ListBox.
Bottom of the list box displays the mimics which contains the list box
Details:

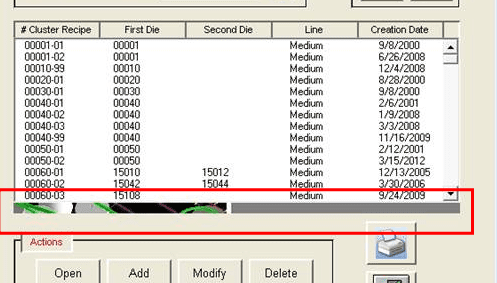

As shown below, bottom of the list box displays the mimics which contains the list box

ListBox_Issue

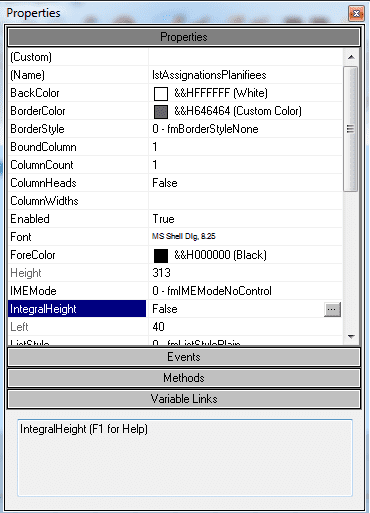

To workaround this issue, you must set  “IntegralHeight” property of the activeX to   “False”

ListBox_Properties

 Download attachments:



Created on: 21 Aug 2012 Last update: 13 May 2024
